Project

The project tool, allows you to project a feature (line or area) on a target object (point cloud, surface, or georeferenced image).

The feature is projected along the height axis, maintaining the XY shape and taking the H coordinate based on the intersection with the target object.

Projected features are added in the project library and the inspector as a child of the target object.

Projected features can be selected and deleted from the project library/inspector and/or from the graphical view.

To project a feature:

To project a feature:

1.

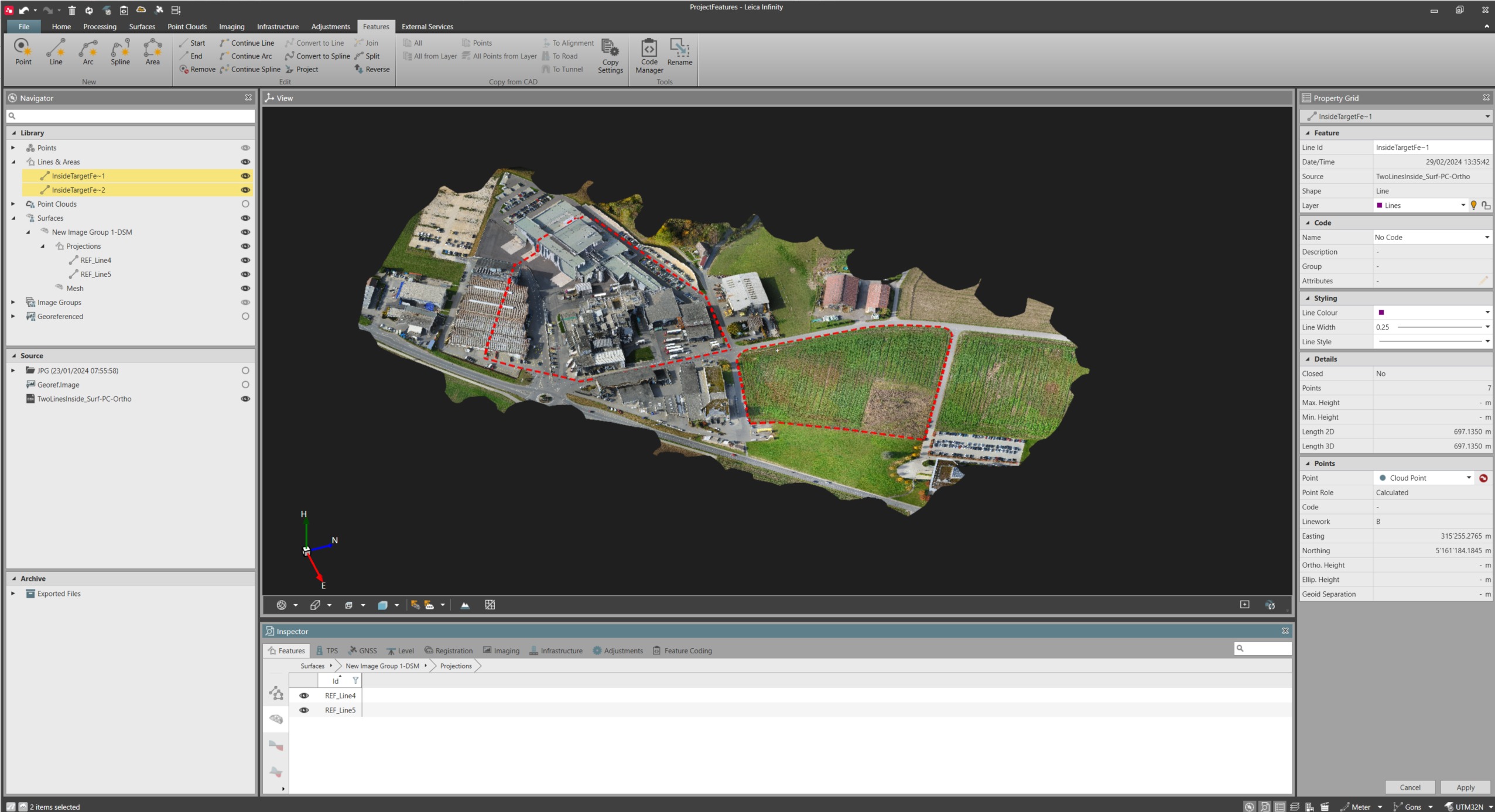

In the Inspector, select the Features tab and select the line/area to be projected. In the Navigator, lines/areas can be selected from the Library section. Alternatively, you can also select lines/areas in the graphical view.It is not possible to send to the register tool, point clouds coming from image processing pipelines or from the multi-station scans.Once sent to the register tool, the point cloud data is listed under available setups.

2.

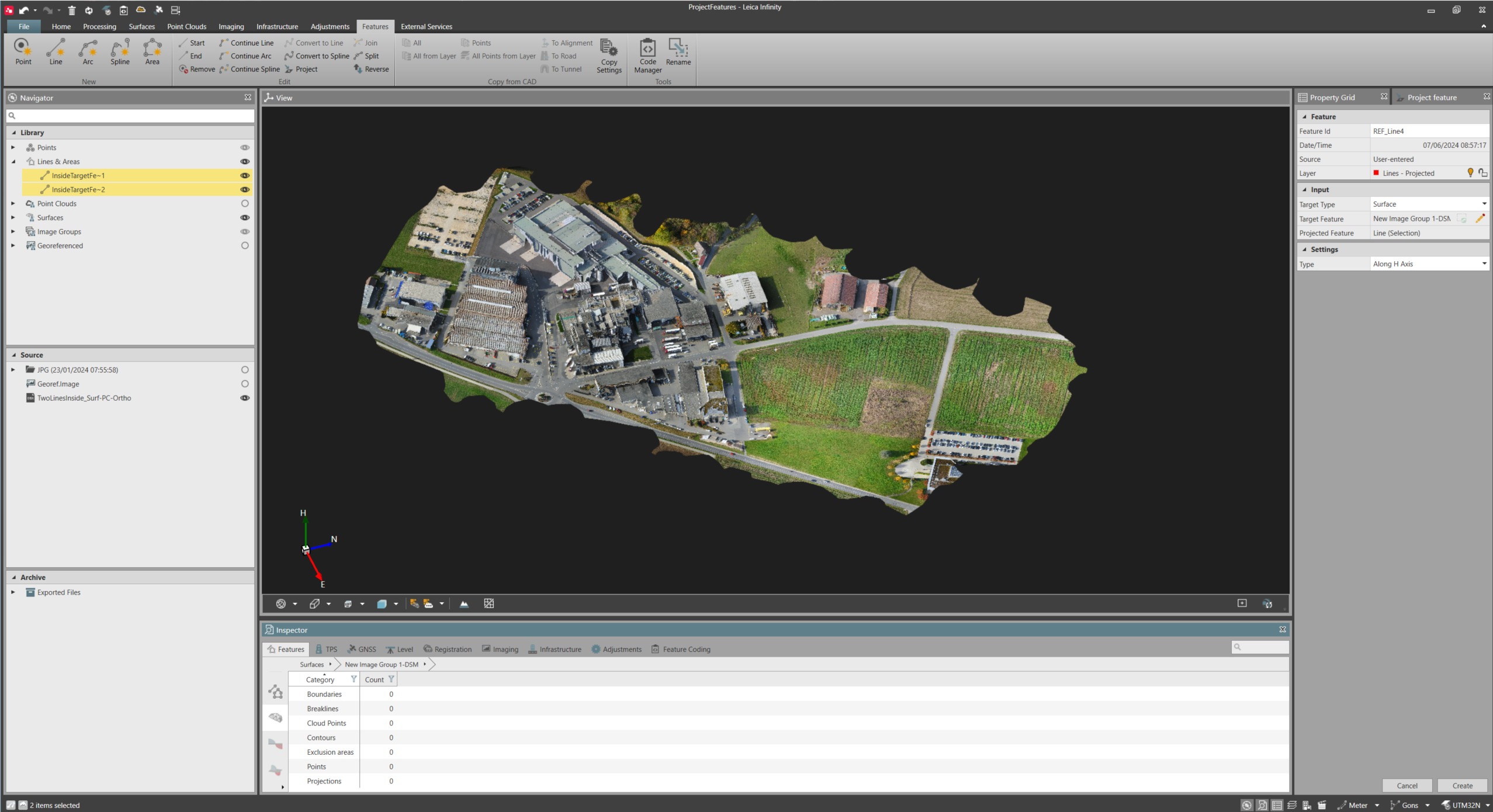

From the Features tab ribbon bar, select Project to open the project tool in the Property Grid and select the target object.

3.

Select Create.
